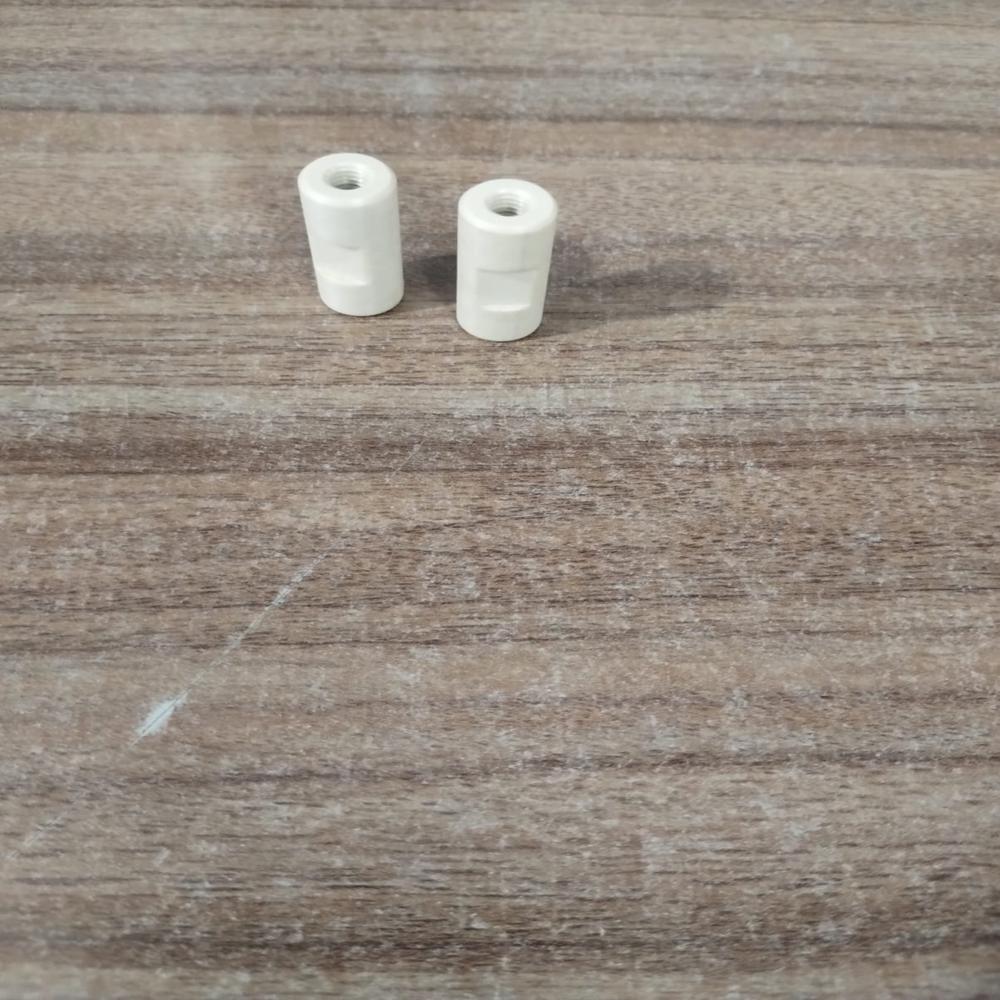

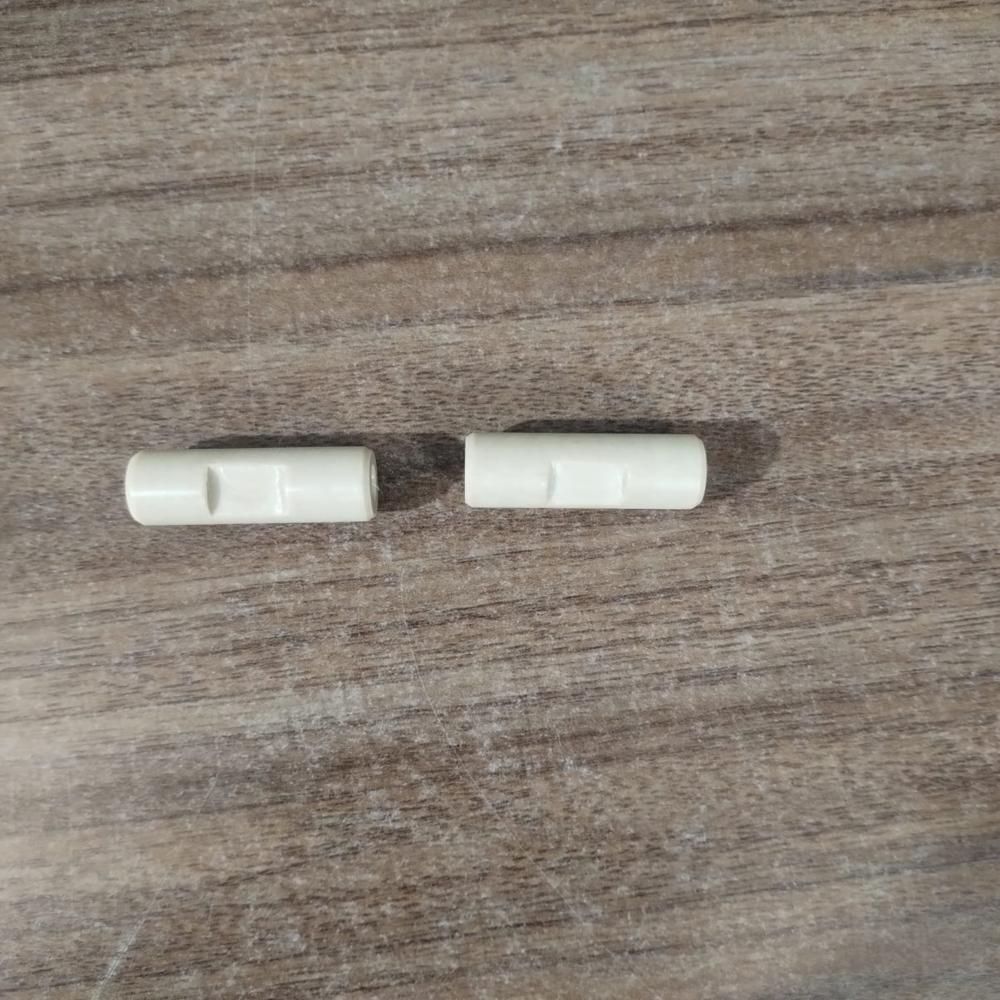

         PEEK Union

A PEEK Union is a small connector used to join two lengths of PEEK tubing in high-performance liquid chromatography (HPLC), fluidic panels, or analytical systems. Its made from polyetheretherketone (PEEK) a high-performance engineering thermoplastic with excellent chemical, thermal, and mechanical properties.

  Specifications (General)

While exact specs vary by manufacturer/model, these are the most common parameters youll see:

      Material

• Body Material: PEEK (Polyetheretherketone) biocompatible, inert, corrosion-resistant.

      Compatibility

• Designed for 1/16 OD tubing (very common for HPLC applications).

        Threading

• Common thread standard: 10-32 UNF (for connection to fittings or instrument ports).

      Pressure Rating

• Frequently rated up to 350 bar (5000 psi) for high-pressure applications. Actual maximum varies with tubing and setup.

       Temperature Range

• Typical adapted connectors support normal lab conditions (often 20C to +120C or higher depending on PEEK grade and application), but the base PEEK material itself can withstand much higher continuous service temperatures (250260 C for PEEK itself).

        Bore / Inner Diameter Options

• Unions are available in various bore sizes such as:

  • 0.25 mm

  • 0.50 mm

  • 0.75 mm
    (These relate to the internal passage through which fluid flows.)

        Dead Volume

• Low dead volume designs minimize retention volume in fluidic systems important in analytical chromatography.

Heres how a high-pressure PEEK union spec might look:

             PEEK Material (Useful for Unions)

The base PEEK material has these general specifications (material property reference):

• Density: 1.301.32 g/cm

• Melting Point: 340343 C

• Continuous Use Temp: 250260 C

• High Chemical Resistance: Broad solvent and chemical compatibility

• Mechanical Strength: High tensile and flexural strength relative to many plastics

These core material attributes support why PEEK connectors are chosen for high-pressure and chemically aggressive fluidic environments.
