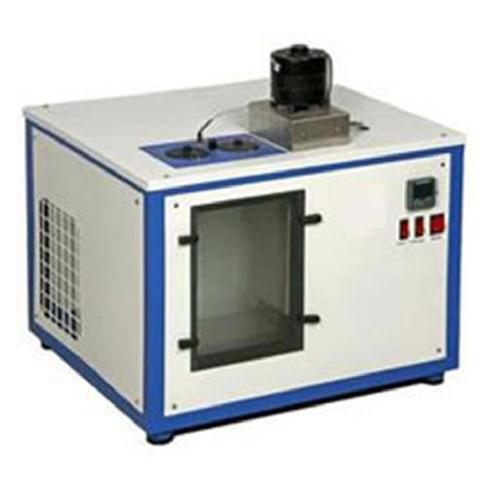

Viscosity Bath

Viscosity Bath Specifications

• Application: Measurement of viscosity using capillary / glass viscometers

• Temperature Range: Ambient +5 C to 100 C (optional up to 150 C)

• Temperature Stability: 0.01 C to 0.05 C

• Temperature Uniformity: 0.05 C

• Controller: Digital PID temperature controller with LED display

• Tank Material: Stainless Steel SS 304 (SS 316 optional)

• Outer Body: Powder-coated mild steel

• Heating System: Immersion heater with safety cut-off

• Circulation: Built-in circulation pump for uniform temperature

• Capacity: 10 / 20 / 30 liters (as required)

• Viscometer Holding: Multi-position viscometer holders

• Insulation: Glass wool insulation for heat retention

• Safety Features: Over-temperature protection, low-level cut-off

• Power Supply: 230 V AC, 50 Hz, Single Phase

• Drain Valve: Provided

• Accessories: Lid with viscometer openings, thermometer port

Optional / Add-Ons

• PT100 temperature sensor

• Data logger / RS-232 / USB interface

• Cooling coil for sub-ambient operation

• Calibration certificate (traceable)
